DORMA AGILE 150 Sliding Door System
Sliding door system with concealed carriers

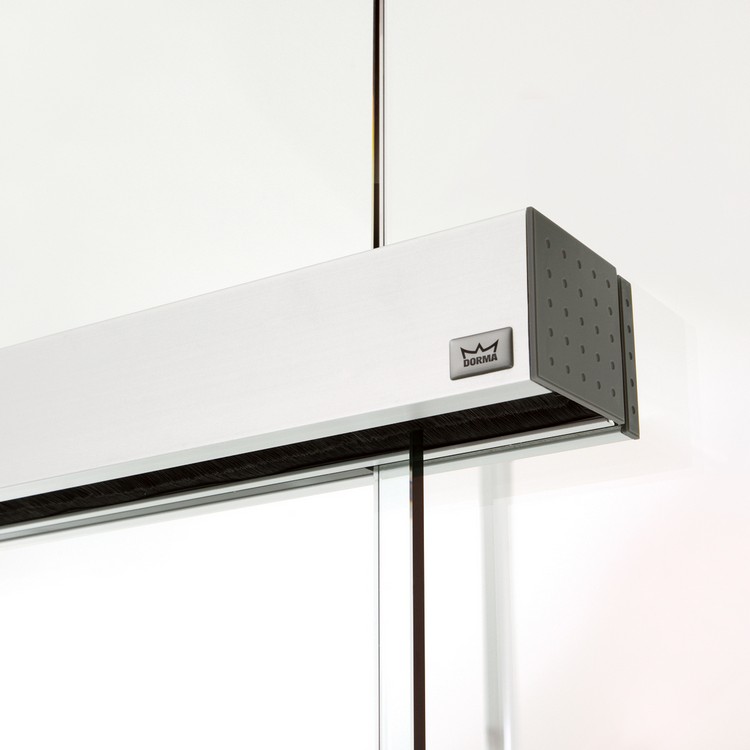

The AGILE 150 operating mechanism is completely concealed in the track, which measures only 63mm high, enabling sliding glass doors to retain their minimalist aesthetics.
Product features
- Modular system
- Can be used where space is limited
- Also suitable for wet rooms (BS EN 1670, Class 4
- Clamp-type fittings – no glass preparation is required
- Easy wall installation
- Long service life

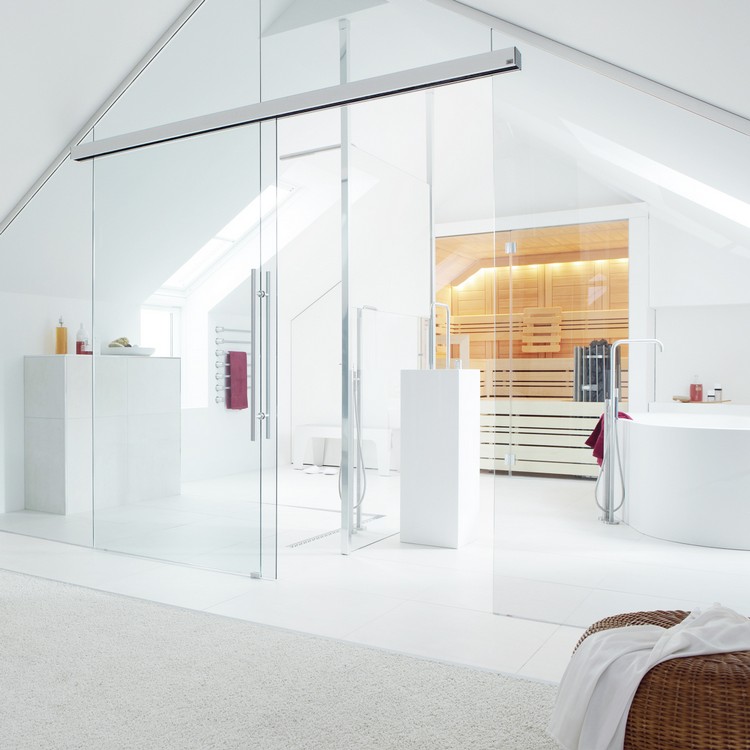

Space saving
Sliding glass doors provide huge space saving
benefits, minimalist design and combined with proven roller technology,
ensure that even large doors can be operated smoothly and with ease.
Reliable stop
The doors are gently decelerated as well as
being reliably held in both their closed and opened states by specially
developed catch-type buffers.
Convenient Syncro version
The AGILE system is also available in a
"Syncro" version. In this configuration, double panelled sliding door
sets open and close as bi-parting doors when just one of the panels is
operated.

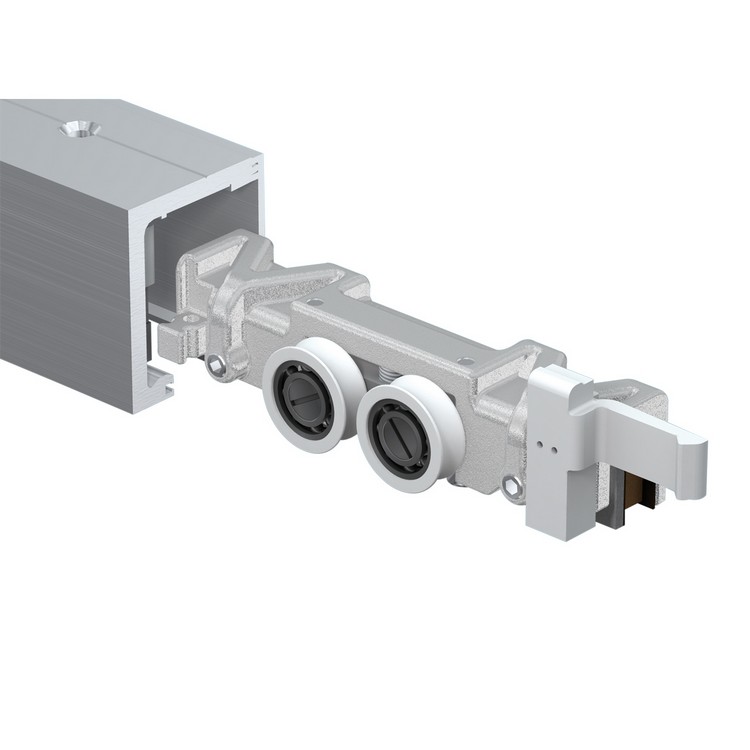

Easy installation
The clamp fitted roller means that no glass
preparation is required. Just two maintenance-free clamp carriers can
support glass of up to 150kg in weight.
One system – many solutions
The AGILE 150 offers versatility in the truest
sense of the word. The system can be fixed to the wall, to the ceiling
or along a lintel in either its single-panel or double-panel
configuration, and with or without fixed sidelights. It can also be
installed with a glass overpanel.
Long service life
The exceptional longevity of the system has
also been proven in protracted tests involving more than 100,000
operating cycles (performed to BS EN 1527).
Benefits for the architect/specifier
- Thanks to the tiny dimensions, the DORMA Agile 150 still can be used where space is limited
- The AGILE 150 takes corrosion resistance to a new level. So there are no obstacles to its installation and use in humid areas
- The AGILE floor guide offers an impressive combination of effective functionality and attractive design
Benefits for the trade/distributor
Modular system reduces storage space requirement
Benefits for the installer/fabricator
- With clamp-type fittings, the need to drill and cut the glass is eliminated.
- Fast, simple fitting, saving time and money.
