DORMA RS 120/120 Syncro Sliding Door Gear
Fittings for toughened glass room dividers
The DORMA RS 120/120 Syncro features a hollow-section aluminum track that is light yet rugged and resistant to twisting. It can be fixed directly under the ceiling or onto a wall.
The RS 120 Syncro features a cable and deflection device for synchronously opening a bi-parting doorset. So a minimum of effort leads to the maximum opening width.
Product features
- Rugged track
- Clip-on covers
- Sidelight profile
- End stop and holder
- Clamp-type fittings – no glass preparation required
- Easy wall installation

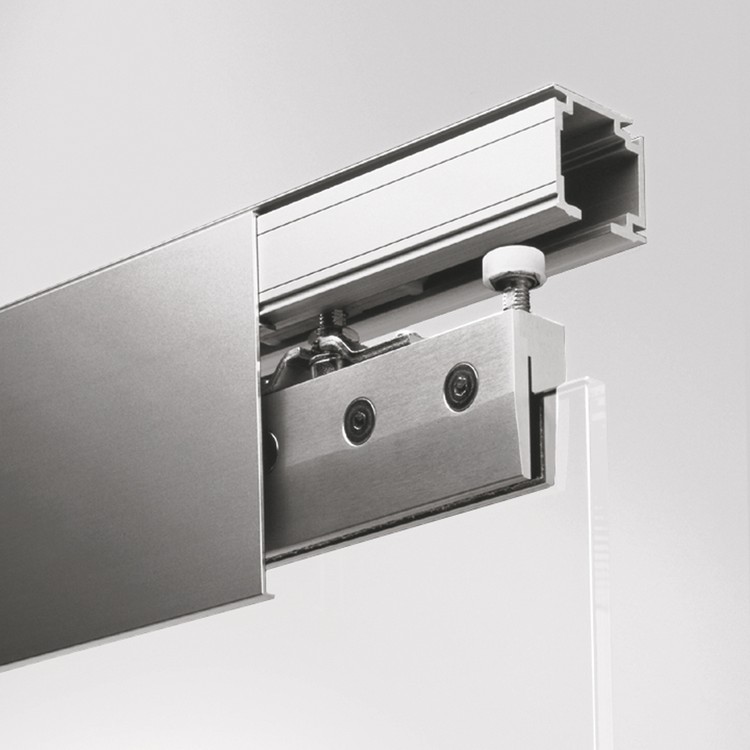

Rugged track
The hollow-section aluminium track is light
yet rugged and resistant to twisting. It can be fixed directly under the
ceiling or onto a wall. Cutting to the required size is simplicity
itself.
Clip-on covers
The covers are made of aluminum, and are easily clipped onto the track.
Sidelight profile
A special profile to be hung and screwed into
the track is available for the use with fixed sidelights. It ensures
that the sidelight glass is mounted at the correct distance from the
track.
Gentle, easy action
The carriers run on large nylon wheels, with
needle bearings, giving a quiet and very low friction ride. They are
made from high grade, glass fibre reinforced nylon, which is corrosion
resistant and extremely strong.
End stop and holder
There is a clever device in the track which operates as a cushioned end stop, retaining the door securely in the end positions.
Syncro version
The RS 120 Syncro features a cable and
deflection device for synchronously opening a bi-parting doorset.
Opening one panel automatically opens the other, so a minimum of effort
leads to the maximum opening width.
No glass preparation
DORMA has extensive experience in working with
toughened glass, and this has led to the development of a clamping
system which is all that is required for securing the glass panels in
the DORMA RS sliding door gear. This system offers the additional
benefit of allowing some door height adjustment after the doors are
hung, without the need to remove the already fixed glass.
Benefits for the architect/specifier
The special features of the RS 120/120 Syncro make it particularly
suitable for applications in which convenience needs to be married to
style
Benefits for the trade/distributor
Modular system reduces storage space requirement
Benefits for the installer/fabricator
- With clamp-type fittings, the need to drill and cut the glass is eliminated
- Fast, simple fitting, saving time and money
